TS-1625 / 2435CF The TS-1625 / 2435CF is a machine that uses volumetric cup filling combined with a vertical form-fill-seal (VFFS) machine for producing large packaging products. It is widely used across various industries for products with relatively uniform shapes, such as salt, sugar, pet food, granular dry fertilizers, snack foods, and grains.

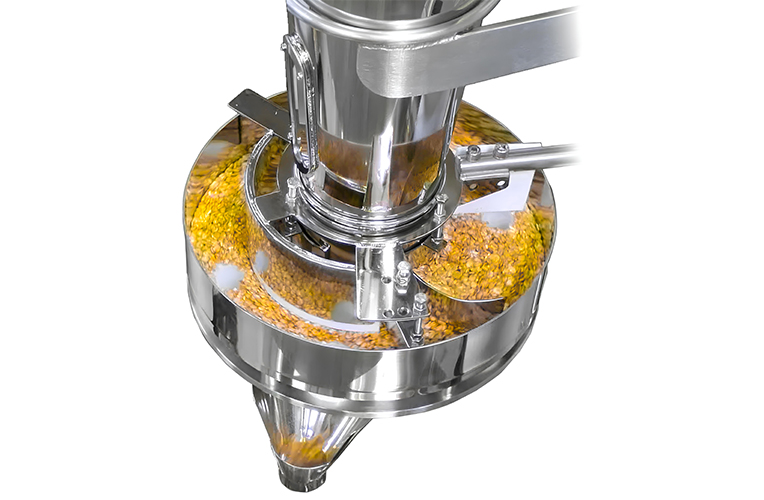

The volumetric cup filling machine uses fixed-volume metering to ensure a fast and stable filling process. Its simple structure and easy maintenance make it especially suitable for high-efficiency packaging lines that allow minimal margin of error.
The TS-1625 / 2435CF is equipped with a control system that uses high-quality components made in Japan, Europe, and the U.S., such as PLCs, servo motors, and pneumatic cylinders, ensuring smooth and stable machine operation.
It features a user-friendly touchscreen HMI (Human-Machine Interface) that meets diverse operational needs and includes 10 built-in production memory modules. The interface supports both Chinese and English languages, making it easy for operators to configure and use. The system is also equipped with an error detection function: in the event of a malfunction, the machine will automatically stop, display the fault point on the screen, and trigger a flashing warning light to alert operators for prompt troubleshooting.
| Model | TS-1625CF | TS-2435CF |
|---|---|---|
| Filling Method | Volumetric Cup | |
| Applicable Packaging Size Range Applications |
W: 110~160 mm L: 150~250 mm |
W: 160~240 mm L: 180~350 mm |
| Filling Weight | 100g~600g | 600~2000g |
| Weight Accuracy | ±1~3% | |
| Packaging Speed | 30–40 packs/min | |
| Machine Dimensions | L1015× W1450× H2900 mm | L1190 × W1490 × H3000 mm |
| Machine Weight | 650kg | 700kg |
| Machine Material | Constructed with stainless steel and aluminum alloy. Contact parts are made of stainless steel, available in 304 (standard) or 316 (optional). | |
| Power Requirements | 220V, 3Ø, 7.5HP, 50/60Hz (or customizable upon request) | |
| Air Pressure Requirements | 5~6 kg/cm2 | |
| Standard Components | Volumetric cup filler, bag forming collar, hot stamping printer, finished product conveyor | |
| Optional Components | Punching device, nitrogen flushing system, feeding system, bag forming collar, gusset bag device, thermal transfer/inject printer, or other customized equipment/accessories | |
*The above specifications may be adjusted based on product requirements or actual testing. Please consult our sales team for details.
*Actual weight accuracy may vary depending on the unit weight, uniformity, and physical properties of the filling product.
