The TS-1625 / 2435MH is a machine that uses multi-head weighers combined with a vertical form-fill-seal (VFFS) machine to produce large packaging products of various sizes and shapes. It is widely used across various industries, including sugar, pet food, granular dry fertilizers, snack foods, traditional Chinese and Western medicinal herbs, and grains.

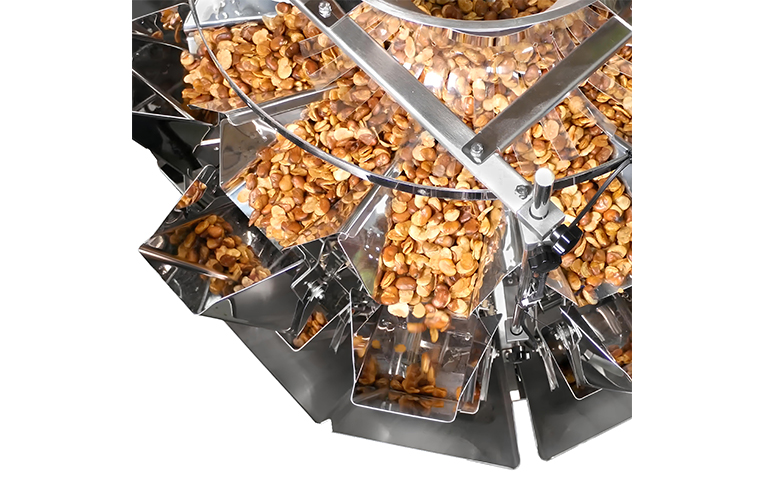

Combination scales, also known as multi-head scales, are advanced weighing devices that are highly efficient and precise in the packaging industry. The uniqueness of multi-head scales lies in their use of multiple weighing heads operating simultaneously to achieve a high-speed and highly accurate weighing process. Therefore, they are the ideal choice for packaging lines dealing with granular, sliced, round, and irregularly shaped products.
The TS-1625/2435MH control system is equipped with top-quality control components from Japan, Europe, and the USA to ensure smooth and stable operation. It features a user-friendly touch-screen HMI that meets various operational needs and includes 10 built-in production memory modules for easy setup production. It also includes an abnormality detection function that automatically halts the machine in case of any issues, displaying the fault point on the screen and flashing warning lights to alert operators troubleshooting.
| Model | TS-1625MH | TS-2435MH |
|---|---|---|
| Metering Method | Combination Weighing | |
| Bag Dimensions | W: 110~160 mm L: 150~250 mm |
W: 160~240 mm L: 180~350 mm |
| Filling Weight | 100g~600g | 600g~2000g |
| Metering Accuracy | ±1% | |
| Packaging Speed | Conveyor feeding 20~30 bags/min | Vertical feeding 30~40 bags/min | |
| Machine Construction | Machine structure is made of stainless steel SUS304 and aluminum alloy. Material contact parts are made of stainless steel (Standard 304 / Optional 316). | |
| Power Required | 220V, 3Ø, 7.5HP, 50/60Hz (Customizable) | |
| Air Pressure | 5~6 kg/cm2 | |
| Standard Components | 10-Multihead weigher, Bag former, Hot stamp date coder, Finished product conveyor. | |
| Optional Equipment | Punching device, Nitrogen flush device, Bag former, TTO / Inkjet printer, Elevator feeder, or other required equipment/accessories |
|
*Specifications mentioned above may change based on product requirements or actual testing.
*Accuracy depends on the filled product's weight, homogeneity, and physical properties.
