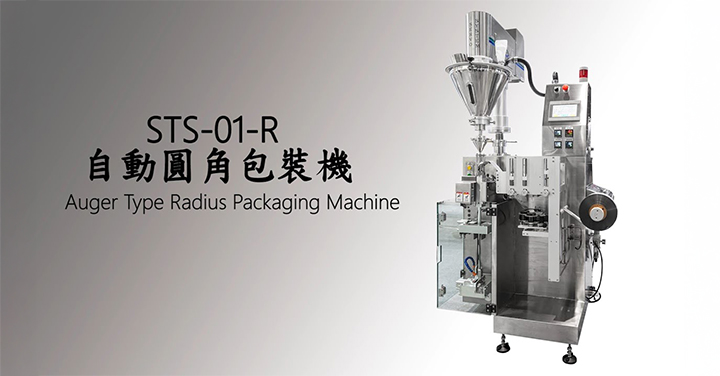

STS-01-R Powder vertical form fill seal machine is specifically designed for producing round corner stickpacks. It is ideal for various powders, including probiotics, sugar substitutes, nutritional supplements, protein powders, and medicine powders.
Utilizes an integrated stainless steel auger assembly as the metering tool, achieving precise and stable powder filling by selecting different types of auger assemblies based on powder characteristics, filling weight, and container size. The quick-release design of the auger assembly and storage hopper allows for easy disassembly and installation, improving production efficiency and cleaning convenience. Additionally, the highly polished storage hopper is designed with specific angles to ensure a seamless, dead-angle-free surface.
The STS-01-R control system is equipped with top-quality control components from Japan, Europe, and the USA to ensure smooth and stable operation. It features a user-friendly touch-screen HMI that meets various operational needs and includes 10 built-in production memory modules for easy setup.
Additionally, it includes an abnormality detection function that automatically halts the machine in case of any issues, displaying the fault point on the screen and flashing warning lights to alert operators for troubleshooting.
| Model | STS-01-R |
|---|---|
| Metering Method | Auger filling |
| Sachet Dimensions | Granules W20~50 mm / L50~140 mm Powder W25~50 mm / L: 50~140 mm |
| Filling Weight | 1~10g |
| Metering Accuracy | ±3~5% |
| Packaging Speed | 20~30 bags/minute |
| Machine Dimensions | L: 1050 × W: 950 × H: 2300 mm |
| Machine Weight | 350kg |
| Machine Construction | Machine structure: Stainless steel SUS304 and aluminum alloy Material contact parts: Stainless steel (Standard 304 / Optional 316) |
| Power Required | 220V, 3Ø, 7.5HP, 50/60Hz (Customizable) |
| Air Pressure | 5~6kg/cm2 |
| Standard Components | 14L hopper, Auger assembly, Bag former, Corner rounding device, Hot stamp date coder, Finished product conveyor |
| Optional Equipment | Nitrogen flush device, Continuous-packaging device, Bag former, TTO / Inkjet printer, Powder feeder, or other required equipment/accessories |
*Specifications mentioned above may change based on product requirements or actual testing.
*Replace auger assembly by filling weight and powder properties.
