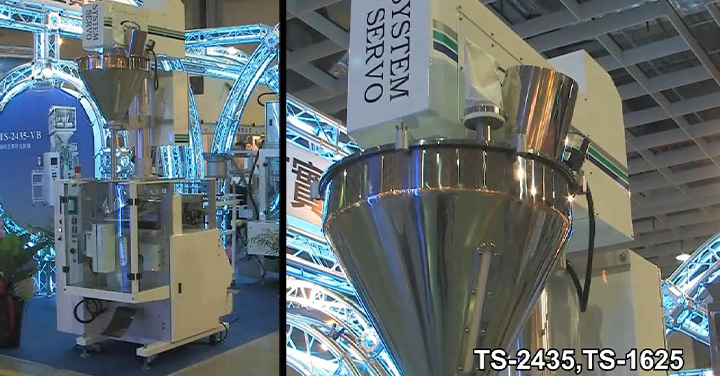

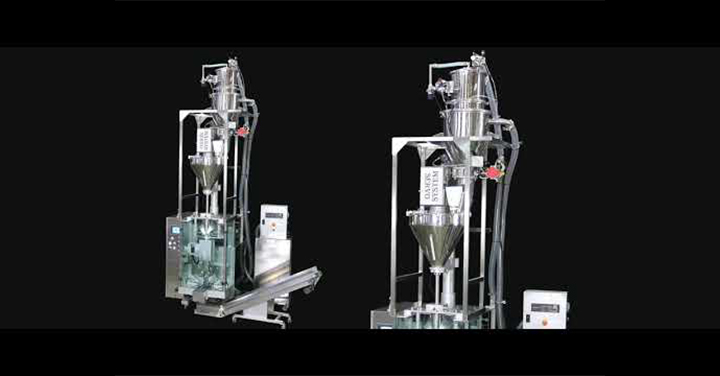

TS-1625 / TS-2435 Powder vertical form fill seal machine designed for producing pillow bags or gusset bags. It is suitable for a wide range of powders, including cocoa powder, coffee powder, tea powder, milk powder, grain powder, spice seasoning powder, chemical powders, and medicine powders.
Utilizes an integrated stainless steel auger assembly as the metering tool, achieving precise and stable powder filling by selecting different types of auger assemblies based on powder characteristics, filling weight, and container size. The quick-release design of the auger assembly and storage hopper allows for easy disassembly and installation, improving production efficiency and cleaning convenience. Additionally, the highly polished storage hopper is designed with specific angles to ensure a seamless, dead-angle-free surface.
The TS-1625 / TS-2435 control system is equipped with top-quality control components from Japan, Europe, and the USA to ensure smooth and stable operation. It features a user-friendly touch-screen HMI that meets various operational needs and includes 10 built-in production memory modules for easy setup. Additionally, it includes an abnormality detection function that automatically halts the machine in case of any issues, displaying the fault point on the screen and flashing warning lights to alert operators for troubleshooting.
| Model | TS-1625 | TS-2435 |
|---|---|---|
| Metering Method | Auger filling | |
| Bag Dimensions | W: 110~160 mm L: 150~250 mm |
W: 160~240 mm L: 180~350 mm |
| Filling Weight | 100g~600g | 600g-2000g |
| Metering Accuracy | ±1~2% | |
| Packaging Speed | 20~30 bags/min | |
| Machine Dimensions | L1015 × W1450 × H2900 mm | L1190 × W1490 × H3050 mm |
| Machine Weight | 600kg | 750kg |
| Machine Construction | Machine structure is made of stainless steel SUS304 and aluminum alloy. Material contact parts are made of stainless steel (Standard 304 / Optional 316). | |
| Power Required | 220V, 3Ø, 7.5HP, 50/60Hz (Customizable) | |
| Air Pressure | 5~6 kg/cm2 | |
| Standard Components | 60L hopper, Auger assembly, Bag former, Hot stamp date coder, Finished product conveyor |
|
| Optional Equipment | Punching device, Nitrogen flush device, Bag former, TTO / Inkjet printer, Powder feeder, or other required equipment/accessories | |
*Specifications mentioned above may change based on product requirements or actual testing.
*Replace auger assembly by filling weight and powder properties.
