PM4-3035A

Automatic Powder Premade Pouch Packing Machine

PM4-3035A is designed for automatic filling and sealing of powder products in preformed pouches. It integrates pouch feeding, opening, auger dosing, sealing, and finished pouch discharge into one compact system.
The machine is suitable for stand-up pouches, zipper pouches, three-side seal pouches, gusseted pouches, and other premade pouch formats. It is widely used for food powders, nutritional powders, seasoning powders, chemical powders, pharmaceutical powders, and similar powder products.

Back

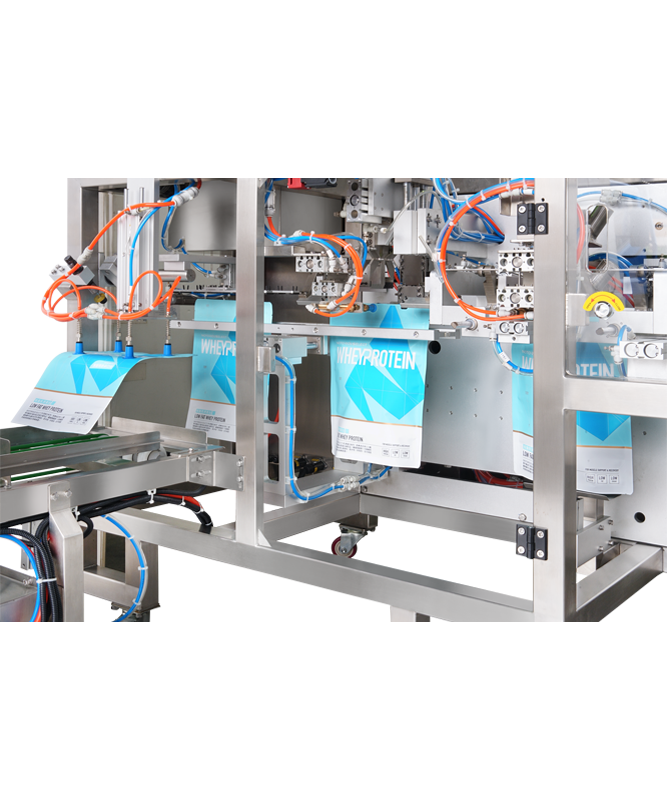

  • Auger Filler with Premade Pouch Packing Machine - Powder Premade Pouch
  • Auger Filler with Premade Pouch Packing Machine - Powder Premade Pouch

Auger Filler Advantage


The auger dosing system provides stable and consistent powder filling. The one-piece stainless steel auger is durable and can be selected according to the filling weight and powder characteristics.
The hopper and filling tools are designed for easy removal, making cleaning, maintenance, and product changeover more convenient. Filling accuracy can be adjusted based on powder flowability, bulk density, filling weight, and auger configuration.

Pick-Fill-Seal (PFS) Machine Features

  • Automatic pouch feeding, opening, filling, sealing, and discharge in one machine. No-pouch-no-fill and pouch-opening-failure detection help reduce powder waste and keep the machine clean.
  • Quick adjustment for different pouch sizes. Pouch feeding, opening, clamping, and sealing positions can be adjusted for different pouch formats and product specifications.
  • Optional dust control device helps reduce powder contamination around the pouch opening and sealing area, improving sealing quality and package cleanliness.
  • The sealing system uses PID temperature control for precise heat adjustment with different pouch materials, including laminated film, PE film, aluminum foil pouches, and zipper pouches. It helps create a clean package appearance with tight and reliable sealing.

Control System


The PM4-3035A uses high-quality control components, including PLC, servo motors, and pneumatic cylinders, to support stable operation during continuous production. A touchscreen HMI allows operators to set parameters based on product type, pouch size, and packaging requirements.
Multiple product memory settings help reduce changeover time. The system also includes fault detection. In case of pouch shortage, pouch opening failure, low powder level, or other abnormal conditions, the machine can stop automatically, display the fault message, and activate the warning light.

Packaging Style

  • Side Gusseted Bag

    Side Gusseted Bag

  • Flat Bag

    Flat Bag

  • Zipper Pouch

    Zipper Pouch

Machine Specifications

MODEL PM4-3035A
Dosing Method Auger filling
Packaging Size Range W: 100–300 mm
L: 100–350 mm
Filling Weight 100g–1000 g
Filling Accuracy ±1–2%
Packing Speed 8–15 pouches/min
Machine Dimensions L1760 × W2143 × H2118 mm
Machine Weight 478 kg
Machine Construction Stainless steel and aluminum alloy structure. Product-contact stainless steel parts are available in SUS304 as standard or SUS316 as an option.
Power Required 220V, 3-phase, 50/60Hz, or customized upon request
Air Pressure 6–8 kg/cm²
Standard Components 30L hopper, auger dosing set, pouch feeder, premade pouch packing machine, filling funnel, finished pouch conveyor
Optional Equipment Dust control device, air evacuation device, feeding equipment, thermal transfer printer / inkjet printer, or other required accessories

*Specifications may vary depending on product requirements and actual testing. Please contact our sales team for details.
*The auger dosing set should be selected according to the filling weight range and powder characteristics.
